Chat Message

This text is AI-generated

This documentation was written with the help of AI and has not been fully reviewed. If something is wrong, unclear or missing, please let us know. Use the feedback form, and say which section it concerns.

The Chat Message shows one message of a conversation as a bubble, with the name of the sender and the time above it. It is found in the Input - OpenBridge section of the Perspective Component Palette as Chat Message.

1. Name of the sender. See Name and Date.
2. Date — when the message was sent, formatted as you choose.
3. Message — the text, in a bubble. See Message.

A Chat Message with default properties and message set to Chat Message:

A Chat Message dropped from the palette has an empty message and is drawn as a small empty bubble. Set message first.

The component is one message. It only displays: it has no input field and no events. To show a conversation, use one Chat Message per message, for example in a Flex Repeater (see Example 1).

Message

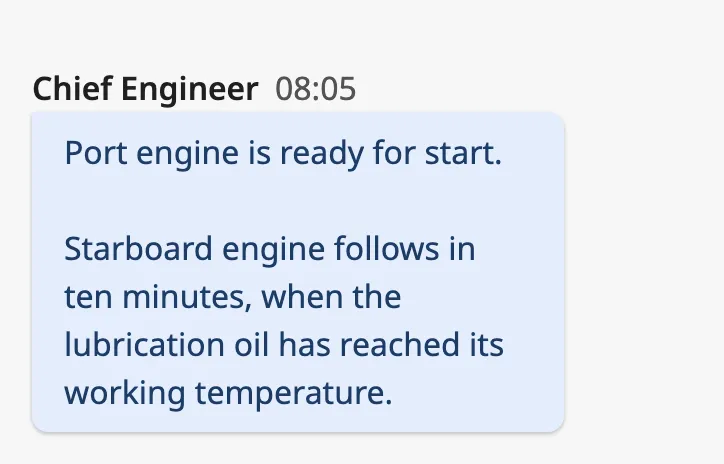

message is the text. A line break in the text starts a new line in the bubble, and an empty line is kept:

The bubble is as wide as the text needs, up to a part of the width of the component; longer text wraps. The bubble grows downwards with the text and is not limited by the height of the component, so give the component room, or let its height follow the content in a flex container.

Properties

Name	Description	Property Type
message	Text of the message. Empty by default.	value

---

Sender

self tells whether the message was written by the person looking at the screen. The blue frame in the images is the component’s box:

self
false (default)	A message from someone else: to the left, coloured.
true	The operator’s own message: to the right, neutral.

Properties

Name	Description	Property Type
self	The message is the operator’s own. Default false.	value

---

Name and Date

The line above the bubble can show the name of the sender, the date, or both:

showName	showDate
false	false
true	false
false	true
true	true

date is a date and time. Bind it to the timestamp of the message. While it is empty, no date is shown.

format decides how the date is written. It is a pattern of letters, where YYYY is the year, MM the month, DD the day, HH the hour (24 h), mm the minute and ss the second. Note that the letters for day and year are upper case. The images show 14 March 2026, 08:05:00 UTC:

format
HH:mm (default)
HH:mm:ss
DD.MM.YYYY HH:mm

timezone selects the time zone the date is shown in: UTC, or local for the time zone of the device the session runs on. With local, the example above reads 09:05 on a device in Oslo.

Properties

Name	Description	Property Type
showName	Show the name of the sender. Default false.	value
name	Name of the sender. Only shown when showName is true.	value
showDate	Show the date. Default false.	value
date	Date and time of the message. Empty by default. Only shown when showDate is true.	value
format	Pattern the date is written with. Default HH:mm. Only shown when showDate is true.	value
timezone	Time zone of the date: UTC or local. Default UTC.	value

---

Position in a Group

Several messages in a row from the same sender are usually drawn as one group. position tells the Chat Message where in such a group it is, and shapes the bubble to match: the corners towards the neighbouring messages are sharper, and a middle or bottom message takes less room above the bubble.

• single (default) — a message on its own.
• top — the first message of a group.
• middle — a message between two others.
• bottom — the last message of a group.

position	self = false	self = true
single
top
middle
bottom

Show the name and date on the single and top messages only; they are drawn on every message that has showName or showDate set.

Properties

Name	Description	Property Type
position	single, top, middle or bottom. Default single.	value

---

Common Properties

Described in Input Components — Common Features:

• Appearance — style, and the palette:

Component Events

The Chat Message has no component events.

Examples

Example 1 — A Conversation

A view custom property messages holds the conversation as a list of objects with text, sender, time and own.

1. Create a view Chat/Message with the parameters text, sender, time and own, and add a Chat Message as its only component.
2. Bind the properties of the Chat Message to the parameters: message to view.params.text, name to view.params.sender, date to view.params.time and self to view.params.own.
3. Set showName and showDate to true, and timezone to local.
4. In the main view, add a Flex Repeater with direction column, set its path to Chat/Message, and bind instances to view.custom.messages.

Example 2 — Date with the Day

To show 14.03 08:05 instead of only the time, set format to DD.MM HH:mm.
