Floating Item

This text is AI-generated

This documentation was written with the help of AI and has not been fully reviewed. If something is wrong, unclear or missing, please let us know. Use the feedback form, and say which section it concerns.

The Floating Item is a short message that floats above the rest of the screen: a confirmation, a status update or a notification the operator can act on or dismiss. It is found in the Input - OpenBridge section of the Perspective Component Palette as Floating Item.

From left to right:

1. Icon — what kind of message it is. See Type and Icons.
2. Title and description. See Text.
3. Day and time. See Time.
4. Action buttons — up to two. See Actions.
5. Dismiss button — the cross. See Dismiss.

A Floating Item with default properties and title set to Floating Item:

A Floating Item dropped from the palette has no title and no description. Set them first.

The Floating Item only draws the message and reports what the operator clicks. It does not appear or disappear by itself: you show and hide it, for example in a popup or by binding its visibility (see Example 1).

Size

The Floating Item is always 640 px wide, whatever the width of the component, and as tall as its content needs. It is drawn from the top left corner of the component’s box, the blue frame in the image:

Make the component 640 px wide, and 74 px high for an item with the actions beside the text or 130 px for one with the actions below it.

---

Text

title is shown in bold, with description below it.

lineType decides what happens to text that does not fit on one line:

lineType
single-line (default)	The text is cut off with an ellipsis.

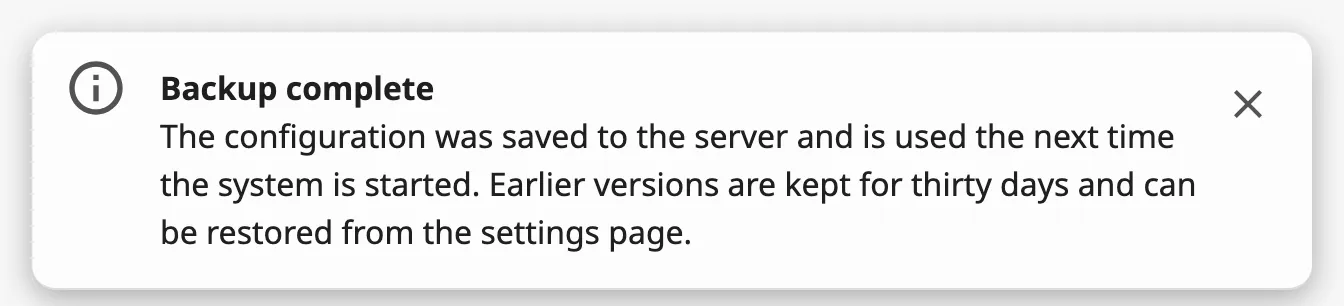

multi-line	The description wraps, over up to eight lines.

Properties

Name	Description	Property Type
title	Title of the message. Empty by default.	value
description	Text below the title. Empty by default.	value
lineType	single-line or multi-line. Default single-line.	value

---

Type and Icons

type selects how the icon is drawn:

type
regular (default)	One icon, primaryIcon.
application	primaryIcon in a circle, with secondaryIcon as a small mark on it. Use it for a message from an application or a system, with the mark telling what kind of message it is.

primaryIcon and secondaryIcon are icon pickers: choose an icon from the openbridge library. See Icons. The primary icon is always shown.

Properties

Name	Description	Property Type
type	regular or application. Default regular.	value
primaryIcon	The icon of the message. Default openbridge/placeholder.	object
secondaryIcon	The mark on the icon. Default openbridge/placeholder. Only shown when type is application.	object

---

Time

Set hasTimestamp to true to show time to the right of the title. Set hasDay to true as well to show day before it.

With the time only:

With the day and the time:

time and day are texts, shown as they are: the Floating Item does not format a date. Bind them to an expression such as dateFormat(now(), 'HH:mm').

The day is only shown together with the time: hasDay has no effect while hasTimestamp is false.

Properties

Name	Description	Property Type
hasTimestamp	Show the time. Default false.	value
time	Text of the time, for example 14:32. Only shown when hasTimestamp is true.	value
hasDay	Show the day before the time. Default false.	value
day	Text of the day, for example Mon. Only shown when hasDay is true.	value

---

Actions

action is the label of the first action button. The button is shown when the label is not empty. action2 is the label of a second button, which is only shown when the first has a label too.

A click on the first button fires onActionClick, and on the second onAction2Click. The buttons do nothing else: the item stays as it is.

direction decides where the buttons are placed:

direction
horizontal (default)	The buttons are in a row below the text and share the width. The item is taller.
vertical	The buttons are beside the text, as wide as their labels. The item stays one row high.

direction makes no difference to an item without action buttons.

Properties

Name	Description	Property Type
action	Label of the first action button. Empty, and no button, by default.	value
action2	Label of the second action button. Empty by default. Needs action to be set too.	value
direction	Placement of the action buttons: horizontal or vertical. Default horizontal.	value

---

Dismiss

The cross at the right is always shown. A click on it fires onDismissClick and nothing more: the Floating Item does not hide itself. Hide it in the event, as in Example 1.

---

Common Properties

Described in Input Components — Common Features:

• In the Designer — the buttons react only in Preview Mode.

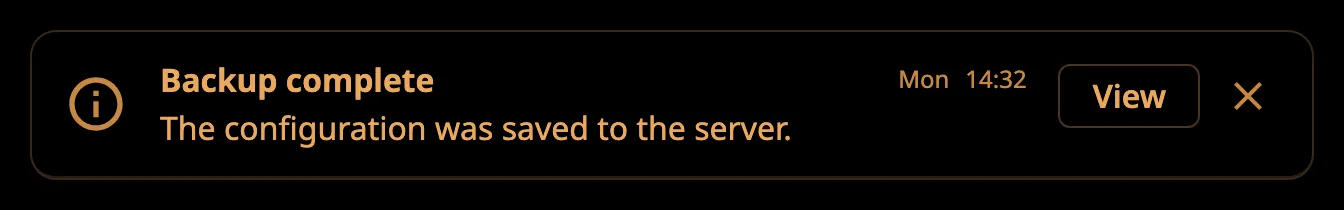

• Appearance — style, and the palette:

The Floating Item has no disabled property.

Component Events

Event	Description	Event Object
onActionClick	Fired when the operator clicks the first action button.	—
onAction2Click	Fired when the operator clicks the second action button.	—
onDismissClick	Fired when the operator clicks the cross.	—
onActionPerformed	Fired for a click on any of the three buttons, just before the event of that button.	—

The event objects are empty. A click on the text or the icon fires nothing.

Use the event of the button you want to react to. onActionPerformed does not tell which button was clicked.

Examples

Example 1 — A Message the Operator Can Dismiss

The view has a custom property showBackupMessage.

1. Drop a Floating Item into the view, 640 px wide, and place it where the message should appear.

2. Set title to Backup complete, description to The configuration was saved to the server. and choose openbridge/info for primaryIcon.

3. Bind meta.visible of the component to view.custom.showBackupMessage.

4. Configure the onDismissClick event with a script action:

   def runAction(self, event):
     self.view.custom.showBackupMessage = False

5. Set showBackupMessage to True from the script that makes the backup.

Example 2 — An Action

1. On the item of Example 1, set action to View and direction to vertical.

2. Configure the onActionClick event with a script action:

   def runAction(self, event):
     self.view.custom.showBackupMessage = False
     system.perspective.navigate(page='/settings/backup')
